500 SM FACTORY < Back

  • New 2027 design & Blue plastic kit
  • KYB closed cartridge suspension units

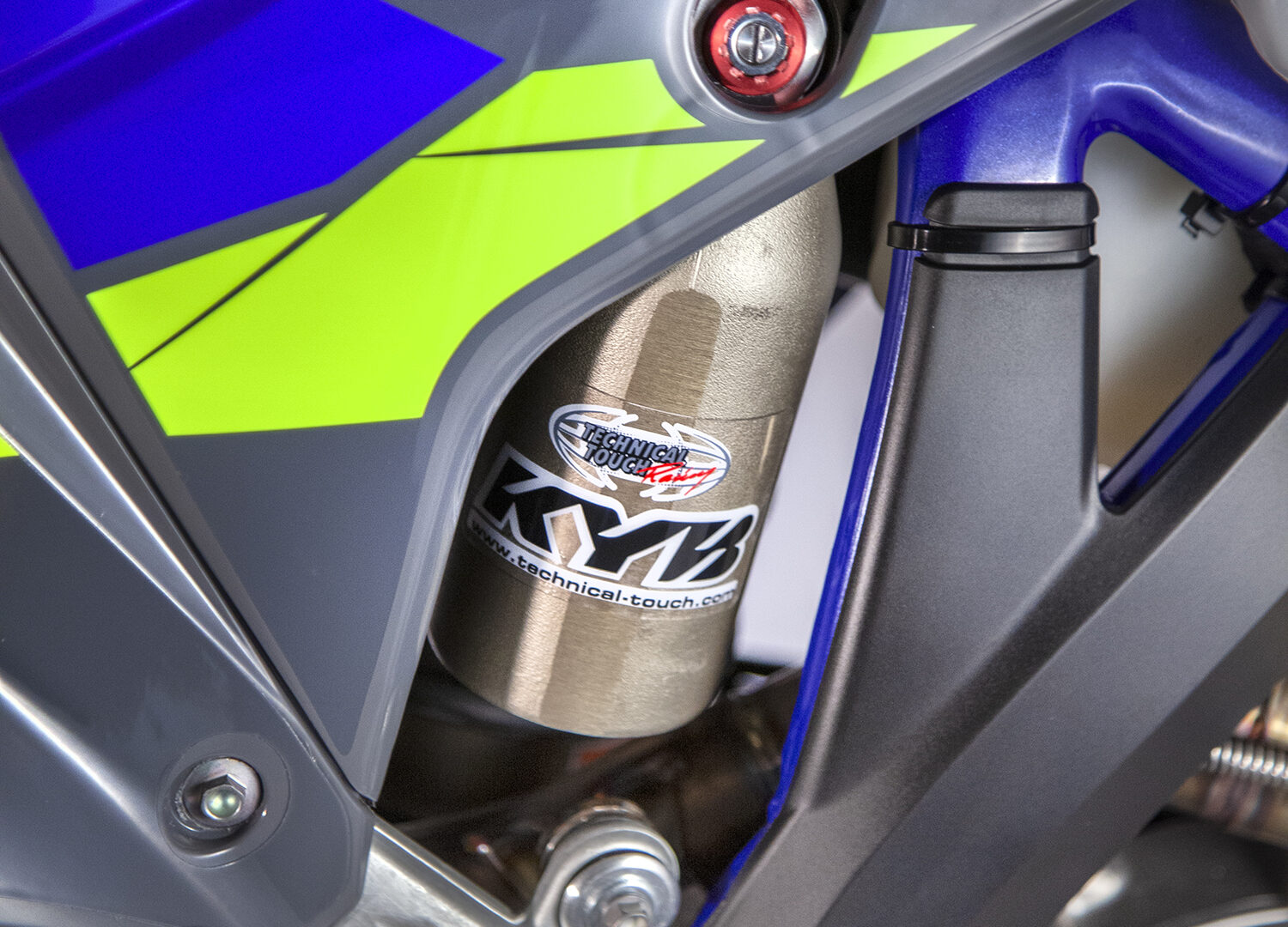

  • KYB shock absorber
  • Complete exhaust line Akrapovič

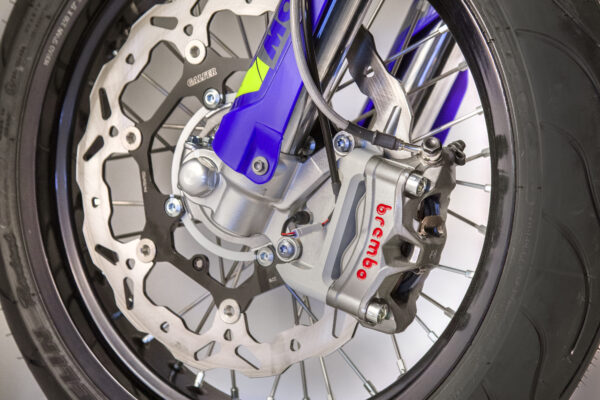

  • GALFER Front brake disc Ø 320 mm
  • 17” Black EXCEL rims
  • New chassis
  • New quick-release air filter box for easier maintenance
  • New cooling system
  • New CNC triple clamps
  • New dashboard support
  • New fork protector
  • New side stand
  • New electrical harness
  • New fuel tank mount
  • New linkage axles
  • New swingarm
  • Tilt sensor
  • New mapping
  • A2 (Europe youth driving licence)
Find a dealer
Specs

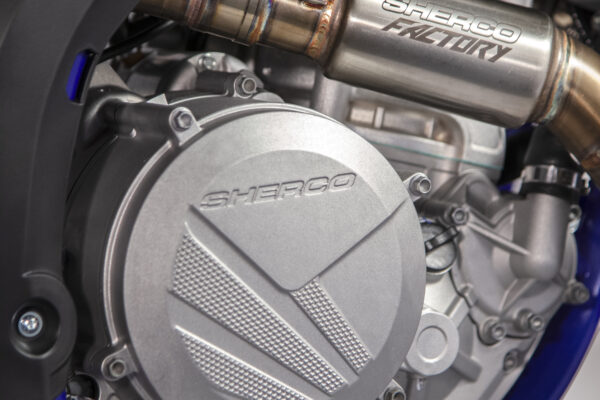

Engine

4 stroke DOHC, 4 valve Sherco technology

Displacement

478,22 cc (29,18 cu in)

Bore x stroke

98 x 63,40 mm (3,86 x 2,50 in)

Carburator

VITESCO digital electronic full injection

Battery

BS Battery 12V 140A Lithium

Fuel

Unleaded petrol 98

Cooling

Liquid system with forced circulation

Start

Electric Starter

Exhaust

Complete Akrapovič exhaust system

Ignition system

DC - CDI ignition with digital advance 220 W Alternator

Transmission

6 speed gearbox, primary gears and chain secondary

Clutch

Hydraulic, multi-disc in oil bath

Ignition

220 W Alternator

Chassis

Semi-perimeter high-strength chrome-molybdenum steel

Tank

9,7 L capacity (2,57 US gal)

Brakes

Hydraulic Ø 320 mm (12,59 in) front Ø 220 mm (8.66 in) rear

Front suspension

KYB closed cartridge fork with hydraulic settings and spring rates specific to each model. 48 mm Ø fork legs - 300 mm stroke

Rear suspension

KYB 50 shock absorber with hydraulic settings and spring rates specific to each model. 18 mm Ø - 330 mm stroke

Front wheel

3,5 x 17” Black rim with Michelin tire 120/70

Rear wheel

5 x 17” Black rim with Michelin tire 150/60

Wheel base

1490 mm (58,66 in)

Ground clearance

320 mm (12,60 in)

Seat base

910 mm (35,80 in)
